Thanks to compact dimensions (16-20 x 36 x 33 cm), the Karcher BD 17/5 C Stair Cleaner can also be used on areas where classic cleaning machines cannot be used due to size and cleaning by hand is still expensive. Building service contractors, commercial or municipal users, who work with such properties, find the appropriate solution in this machine. Easily accessible operating elements at the side guarantee quick and comfortable handling. With the rotational speed controller (0 – 470 rpm) and corresponding accessories, the machine can be optimally adapted to the respective cleaning situation: for example, deep cleaning, crystallisation or polishing hard areas or shampooing carpeted areas. Specially for stairwell cleaning the simultaneous cleaning of horizontal and vertical areas is a pleasant relief which saves time, energy and costs. The housing of the machine is made from sturdy, impact-resistant plastic. The disc brush or the pad drive board can be easily changed within seconds. Thanks to the two handles, the machine weighing 5 kg can be guided and operated safely.
Lightweight and compact
Suitable for small areas such as stairwells or window sills. For easy transport.
High-quality components
Device is virtually maintenance-free.

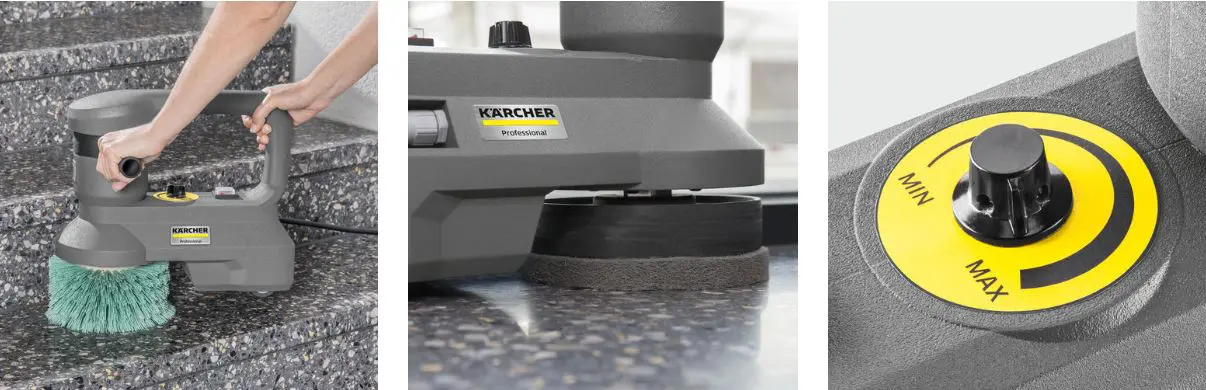

Speed 0-470 rpm
Speed can be adjusted to suit the cleaning task.
Optionally available corner brush
For cleaning right into the corners. (with an optional corner brush for simultaneous horizontal and vertical use)
Extensive range of accessories
Versatile.
Brushes available in different hardnesses and diameters. Also for cleaning carpets.
Pads and pad drive boards for smooth floors.
Easy to use controls
Clear and easy to use
All of them accessories can be disassembled
Space-saving storage
Vertical or horizontal use
More flexibility: Cleaning horizontal surfaces (such as stairwells or window sills) and vertical surfaces (such as risers)
Attachable tank
Facilitates work on landings (optionally available)
Brush and driver plate replacement
Quick and easy adjustment to suit the particular cleaning task.
Technical data
| Working width (mm) | 170 – 200 |
| Working width of brushes (mm) | 170 |
| Working height (mm) | 330 |
| Brush rotational speed (rpm) | 470 |
| Motor rating of brush motor (W) | 120 |
| Sound pressure level (dB(A)) | 60 |
| Supply voltage (V/Hz) | 220 – 230 / 50 – 60 |
| Weight without accessories (kg) | 5,9 |
| Weight (with accessories) (kg) | 7,8 |
| Weight incl. packaging (kg) | 8,6 |
| Dimensions (L x W x H) (mm) | 330 x 136 x 290 |
Equipment on the Karcher BD 17/5 C Stair Cleaner
- Adjustable brush speed
- Wheels
- Mains operation
- Tank optional, 3.5 l
- Tank, optional (2), 5 l
