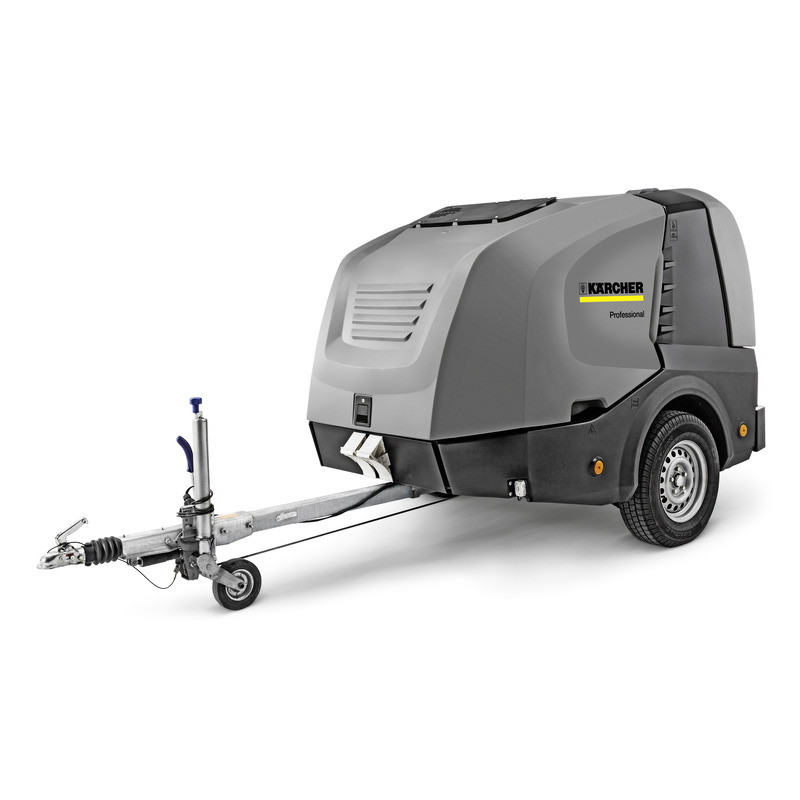

Thanks to its powerful diesel engine, the Karcher HDS 17/20 De Tr1 Hot Water High Pressure Cleaner with 200 bar pressure constantly delivers spotless cleaning results even without electricity. Example applications include construction sites, industry or the municipal sector. Alongside maximum mobility and flexibility, the reliable machine also impresses with its exemplary efficiency. The HDS trailer also scores top marks for ease of servicing and operating comfort. The machine can be configured as required and can therefore be perfectly adapted to individual requests.
Maximum efficiency
Proven and highly efficient burner technology. Heat recovery through use of waste heat from the engine. Environmentally-friendly operation and low operating costs thanks to Kärcher’s eco!efficiency mode.

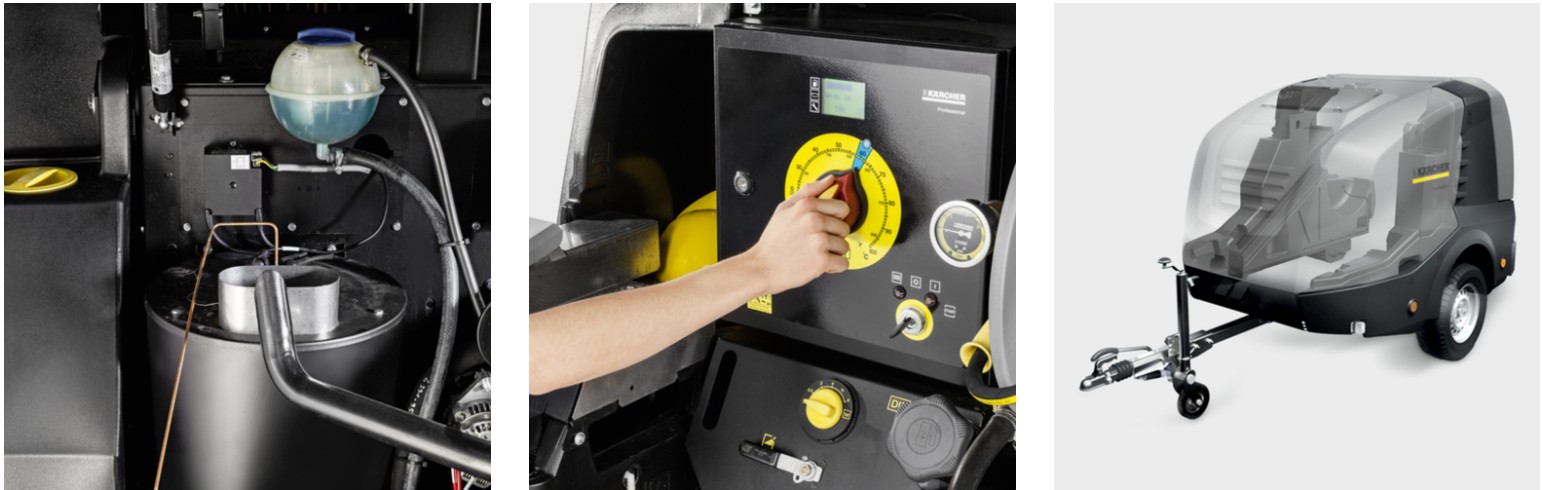

Easy operation
The machine is easy to operate using a central selector switch. Easy to set up and dismantle thanks to two optional hose reels in the control area. Safe storage thanks to the ample storage options for protective gear, accessories and cleaning agents.
Self-sufficient application
Large 500 l water tank for up to 30-minute cleaning applications with full water performance. With 100 l diesel tank – ideal for long work assignments. Powerful Yanmar diesel engines allow the machine to be used independently of any power source.
High flexibility
Thanks to its configurability, each trailer can be custom-made according to customer requests.
Available as Skid or Cab variant for mobile application as a trailer or as a stationary solution.
A large hood enables service staff to access the internal components more easily.
Easy servicing
Sophisticated service software for rapid fault diagnosis during servicing.
Tried-and-tested high-quality Kärcher components guarantee a long lifetime.
Includes: Water softening system to protect the heating coil against calcification.
Reliability
Numerous safety functions protect the HDS trailer against damage in the case of an error.
Integrated frost protection mode to protect all components in cold exterior temperatures.
Proven and highly efficient burner technology.
Application areas

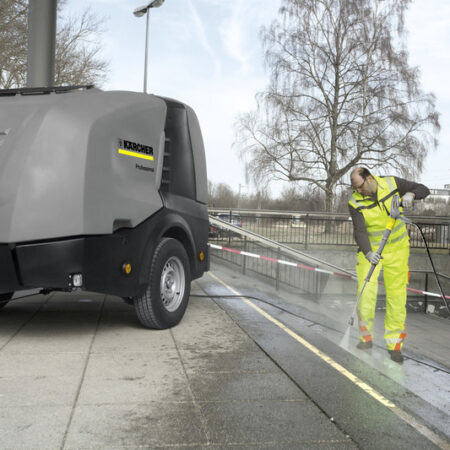

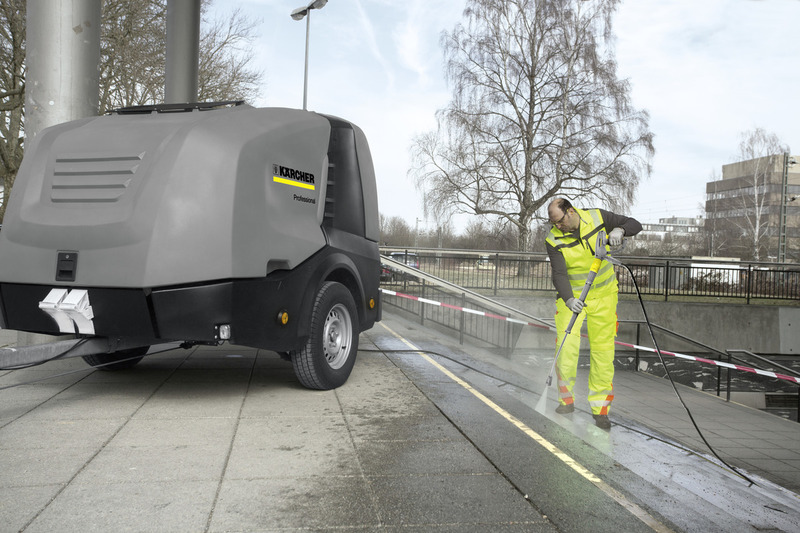

Municipal (cleaning public open spaces, traffic routes, removing graffiti and chewing gum)
Construction (cleaning construction machines, scaffolding, casing, equipment)
Industrial cleaning (removing paint and coatings, cleaning machines, parts and equipment)
Technical data
| Drive type | Diesel |
| Motor manufacturer | Yanmar |
| Motor rating (kW/hp) | 19 / 26 |
| Flow rate (l/h) | 900 – 1700 |
| Pressure (bar/MPa) | 60 – 200 / 6 – 20 |
| Consumption of heating oil in eco!efficiency mode (kg/h) | 9,7 |
| Dimensions (L × W × H) (mm) | 3646 x 1747 x 1735 |
Scope of supply on the Karcher HDS 17/20 De Tr1 Hot Water High Pressure Cleaner
- Spray gun: EASY!Force Advanced
- High-pressure hose: 40 metre
- Spray lance: 1050 mm
- Power nozzle
- Servo Control
