Powerful Karcher HDS 6/14 C Hot Water Pressure Washer in the HDS compact class: with the unique eco!efficiency mode the Hot Water Pressure Washer Karcher HDS 6/14 C combines economical and environment-friendly work with superb comfort for the user. The EASY!Force high-pressure gun utilises the recoil force of the high-pressure jet to reduce the retaining force to zero, while the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity. The operation is also effortless, after all the machine has an intuitive single-button operation. Large wheels and a steering roller/castor ensure smooth mobility, whereas the robust chassis with integrated tanks for fuel and cleaning agent also survives tougher applications without difficulty. Practical storage compartments for accessories, nozzles, etc. round off the clever concept of the 1-phase machine.
Efficiency
eco!efficiency mode – efficient and environmentally friendly, even when used for prolonged periods. Reduces fuel consumption and CO2 emissions by 20%. Accurate cleaning agent dosing unit with clear rinse function.
Ease of use

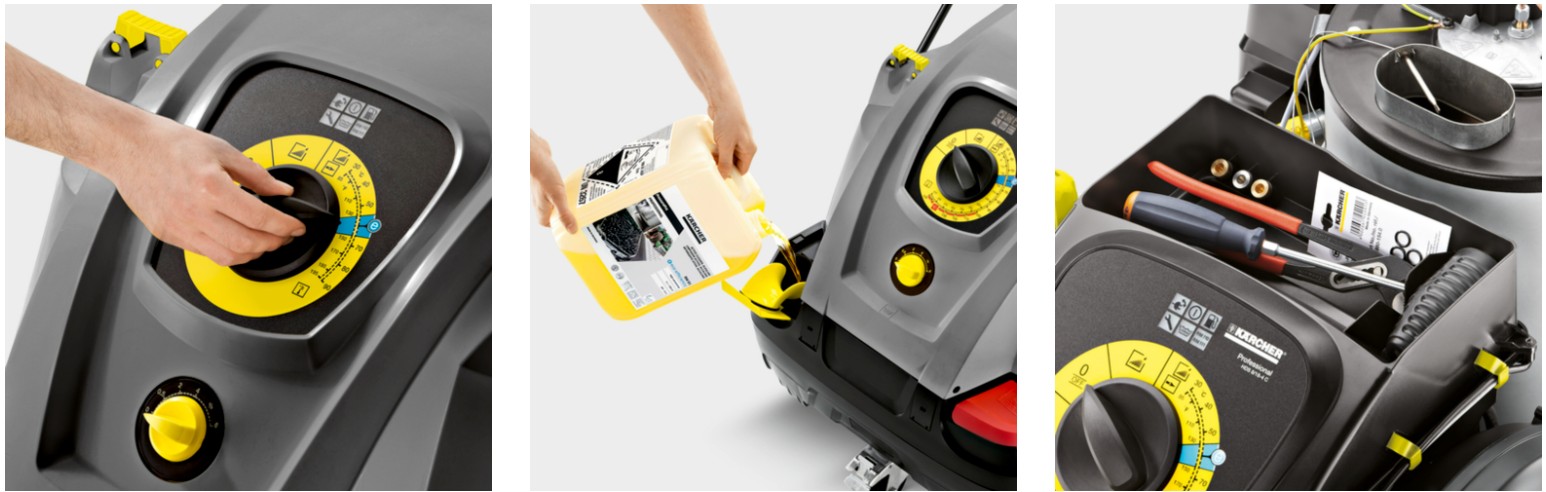

Intuitive operation thanks to the large single-button selector switch. Large tank opening with filling chute. Tanks for cleaning agent, calcification protection and fuel can be conveniently filled from outside without opening the hood.
Storage
Lockable accessory compartment for nozzles, tools, etc. Storage hooks for power cable and high-pressure hose. Integrated lance holder for transport.
Reliability
The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
Large water filter protects pump against damage.
Water softening system protects the heating coil against calcification damage.
Portability
“Jogger” design with large wheels and steering roller.
Large integrated handles in the chassis.
Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.
Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
Application areas
Vehicle cleaning
Device and machine cleaning
Workshop cleaning
Cleaning outdoor spaces
Service station cleaning
Façade cleaning
Swimming pool cleaning
Cleaning of sports facilities
Cleaning during production processes
Cleaning of production facilities
Technical data
| Power supply (Ph/V/Hz) | 1 / 230 / 50 |
| Flow rate (l/h) | 240 – 560 |
| Working pressure (bar/MPa) | 30 – 140 / 3 – 14 |
| Temperature (for supply 12 °C) (°C) | max. 80 |
| Connected load (kW) | 3.6 |
| Consumption of heating oil or gas at full load (kg/h) | 3.5 |
| Consumption of heating oil in eco!efficiency mode (kg/h) | 2.8 |
| Power cable (m) | 5 |
| Fuel tank (l) | 15 |
| Weight (with accessories) (kg) | 102 |
| Weight incl. packaging (kg) | 110.8 |
| Dimensions (L × W × H) (mm) | 1060 x 650 x 920 |
Scope of supply of the Karcher HDS 6/14 C Hot Water Pressure Washer
- Spray gun: EASY!Force Advanced
- Spray lance: 1050 mm
- Power nozzle
Equipment
- High-pressure hose length: 10 metre
- High-pressure hose specification: DN 6, 250 bar
- Soft Damping System (SDS)
- Pressure cut-off
- Integrated fuel and detergent tank
