Puzzi 10/1 with upholstery nozzle and floor nozzle is particularly suited to hygienic and effective cleaning of small to medium surfaces. With 1 bar spray pressure, the spray extraction machine ensures gentle, deep cleaning of textiled surfaces and delivers impressive results, especially when cleaning carpets and upholstery. Thanks to the narrow floor nozzle, the machine is optimally suited for use in confined spaces. The flexible suction lips allow cluttered areas to be cleaned easily. The spray extraction machine is fitted with an integrated cable hook and a holder for a handle with trigger and suction pipe.

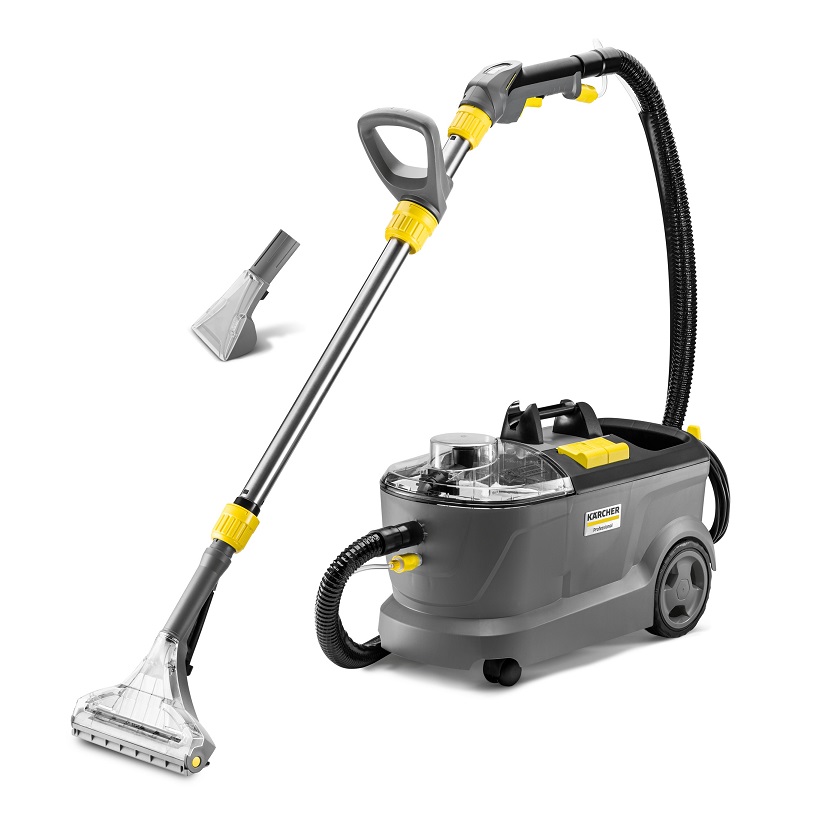

Kärcher Spray-Extraction Cleaner Puzzi 10/1
Puzzi 10/1 with floor nozzle/upholstery nozzle for cleaning carpets and upholstery using spray extraction. Ideal for smaller areas. With integrated cable hook and holder for handle with trigger/suction pipe.
Technical data
Max. area performance (m²/h) | 20 – 25 |
Air flow rate (l/s) | 54 |
Vacuum (mbar/kPa) | 220 / 22 |
Spray rate (l/min) | 1 |
Spray pressure (bar) | 1 |
Fresh/dirty water tank (l) | 10 – 9 |
Turbine power (W) | 1250 |
Pump power (W) | 40 |
Voltage (V) | 220 – 240 |
Frequency (Hz) | 50 – 60 |
Weight (kg) | 10.7 |
Dimensions (L × W × H) (mm) | 690 x 325 x 440 |
Equipment
- Spray hose with integrated water feed, 2.5 m
- Integral accessory holder for manual nozzle
- Upholstery nozzle
- Additional handle
- Cable hook
- Narrow floor nozzle with flexible suction lip
- Handle with trigger
