Karcher Spray-Extraction Cleaner Puzzi 8/1 C – With a 240 mm carpet nozzle and a short upholstery nozzle as standard – the Puzzi 8/1 Adv spray extraction cleaner is designed for particularly fast and thorough cleaning of upholstery and carpeted areas.

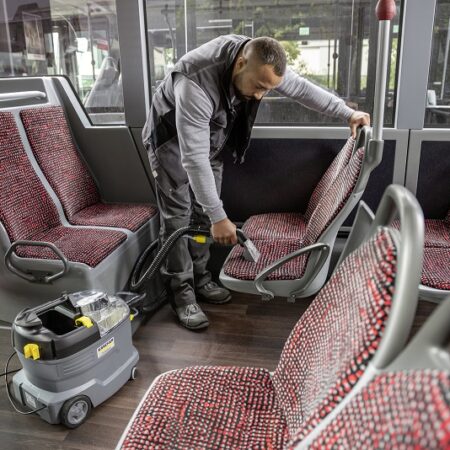

Thanks to its excellent back suction performance, the professional Puzzi 8/1 Adv spray extraction cleaner from Kärcher delivers excellent and hygienic cleaning results, as well as ensuring that textile surfaces can be used again quickly. For this purpose, the spray extraction machine sprays the cleaning solution deep into the textile fibres, then removes it again with the dislodged dirt, making it perfect for cleaning upholstery, carpets and other textile surfaces. Its robust, compact design ensures a long lifetime and thus high cost-effectiveness – ideal for building service contractors, the hotel and hospitality sector or for cleaning vehicle interiors. The appliance lid, upholstery nozzle and floor nozzle are transparent for a better view of the dirty water. An inspection window on the handle further increases the monitoring options. The low weight of the Puzzi 8/1 Adv and an ergonomic carrying handle allow it to be transported with one hand. Large push-buttons that can be operated by hand or foot also increase convenience for the user.
Outstanding cleaning performance
Perfect fibre-deep cleaning of textile and carpet surfaces. Fast drying means that surfaces can quickly be used again thanks to the excellent back suction performance. Excellent cleaning result with visible before-and-after effect.
Ergonomically designed and extra-short upholstery nozzle
Handle and pressure switches can be operated with just one finger. Practical knob shape allows different holding positions. Red nozzle mouthpiece ensures efficient water consumption.
Comprehensive set of carpet cleaning accessories
Flexible suction lip for optimum suction angle and ultimate drying results. 240 mm wide floor nozzle with integrated spray/suction tube. Ergonomic two-handed grip for extra user comfort.
Light weight and compact, robust design
Effortless, also one-handed transport over ledges and steps.
Designed for long periods of fatigue-free use.
Long service life ensures high efficiency.
Removable, smart 2-in-1 container
Quick and simple to fill the fresh water tank.
Convenient and simple to remove dirty water.
Quick-start illustration for simple operation.
Easy to operate thanks to two large push-buttons
No need to bend down: on/off foot switch for speed and ease of use.
Quick 1-step method: combined spraying and vacuuming in one operation.
2-step method: Spray on fibres and leave to soak in – then vacuum off.
Large rear wheels and flexible 360° steering rollers
Easy manoeuvring even on uneven surfaces.
Particularly manoeuvrable and flexible to handle when cleaning.
Folding cable hook
For safe storage of the power cable.
Practical and protects the cables.
Large, open, fresh water filling opening
Convenient, safe and quickly filled with fresh water.
Clearly visible maximum level indicator.
No spillage when dragging or pushing back the machine.
Integrated storage for the upholstery nozzle and the carpet nozzle
Thanks to the clip design, the upholstery nozzle is always within reach.
Integrated suction tube holder with a floor nozzle in the carrying handle.
Technical data
| Max. area performance (m²/h) | 12 – 18 |
| Air flow (l/s) | 71 |
| Vacuum (mbar/kPa) | 270 / 27 |
| Spray volume (l/min) | 1 |
| Spray pressure (bar) | 1 |
| Tank of fresh/dirty water (l) | 8 / 7 |
| Turbine capacity (W) | 1200 |
| Pump capacity (W) | 40 |
| Supply voltage (Ph/V/Hz) | 1 / 220 – 240 / 50 – 60 |
| Weight without accessories (kg) | 8,6 |
| Weight incl. packaging (kg) | 14 |
| Dimensions (L x W x H) (mm) | 524 x 332 x 442 |
Equipment on the Karcher Spray-Extraction Cleaner Puzzi 8/1 C
- Power cable: 7.5 metre
- Short upholstery nozzle with integrated handle
- Spray/suction hose: 2.5 metre
- Floor nozzle: 240 mm
- Integrated accessory storage for upholstery/crevice nozzle
- Integrated accessory storage for floor nozzle
- Spray/suction gun
- D-handle for spray/suction tube
- Removable 2-in-1 container for fresh/dirty water
- Spray/suction tube: 1 piece(s)
