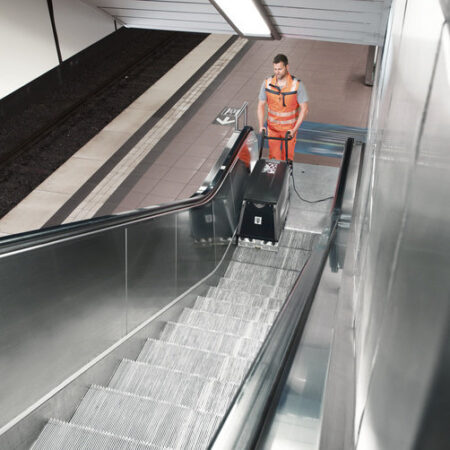

Cleaning with the BR 47 35 esc is performed with the escalator or travelator running. The machine is positioned at the bottom of the escalator. Special nozzles spray the cleaning solution onto the scrubbing brushes, which then apply it to the treads. (Treads must move away from the machine.) Dirty cleaning solution is vacuumed away gain in the same operation. This is assisted by pick-up brushes which convey the solution to the suction nozzles. The shape of the brush head and the central brush motor allow the brushes to reach and clean the outermost grooves in the tread. A centring skid in the middle of the brush head keeps the machine in alignment during the cleaning process. The BR 47 35 esc is suitable for many different makes of escalators and travelators. Four different sets of combs are available to suit most makes. They engage in the tread grooves to provide a seal between the machine and the treads for efficient pickup.
Kärcher Stair-And-Escalator Cleaner BR 47/35 Esc
Machine for basic and maintenance cleaning of escalators and travelators with a performance of 2-3 escalators/travelators per hour.
|Working width (mm)||470|
|Brush working width (mm)||470|
|Working width, vacuuming (mm)||470|
|Max. area performance (m²/h)||75|
|Fresh/dirty water tank (l)||35 / 35|
|Fresh water tank capacity (l)||35|
|Brush speed (rpm)||870 / 1090|
|Brush speed, sweeping (rpm)||870|
|Brush speed, washing (rpm)||1090|
|Brush motor power (W)||1100|
|Suction motor (W)||800|
|Sound pressure level (dB(A))||75|
|Water flow (l/h)||60|
|Pressure (bar)||4 / 7|
|Current type (V/Hz)||220 – 240 / 50 – 60|
|Weight (with accessories) (kg)||90|
|Dimensions (L × W × H) (mm)||1129 x 480 x 1031|
- Cleaning brush
- Pick-up brushes
- Mains operationMains operation
- Suction motor, 800 W
Battery-powered walk-behind scrubber dryers in the 40 litre class without traction drive. Ideal for areas of 400 to 1100 m². With innovative KIK system. With roller or disc brush head.
The TTG6650 cable machine is a genuine workhorse providing a truly cost effective answer to big area low cost floor maintenance. First and foremost the user will find the TTG6650 as easy to use as our smaller machines with the control and operation systems to exactly the same specification, it handles like a dream. Big capacity polyform tanks provide a full 60 litre capacity to match the exceptionally stable 65cm single brush scrubbing head, complemented by an oversized, floating aluminium floor tool. • Polyform Tanks - Heavy duty clean and dirty water tanks. • Structofoam Tilting Brush Deck - Making brush changes quick and simple. • Fully Adjustable Handle - For the perfect working position. • TwinFlo Vacuum Motor - Provides exceptional wet pick-up. • Stainless Chassis - Strong stainless steel chassis.
The TwinTec 1840 cable machine has been designed to address the question of size being exceptionally compact, yet with performance equal to bigger machines. The compact design really does allow this machine to clean in areas normally cleaned by hand, yet 30% to 40% faster and better. Although designed for small and congested areas the TTG1840 is equally at home in larger areas and can be used in conjunction with our cable roll, “the cable reel that rolls”, extending the cable length from 20m to 40m without any loss of performance. The style and proportion of the polyform water tanks allow for the machine to adopt a convenient tilt position with only approximately 5 litres in the clean water tank to facilitate single handed brush or pad changing. • Convenient - Fold flat design for easy transport from site to site. • Rugged Construction - Tough all steel chassis design. • Fully Adjustable Handle - For the perfect working position. • Low Noise - Quieter, unobtrusive design means true versatility. • Easy Change - Easy one handed brush or pad changing.
The 1-SWS is a high quality, rotary disc floor scrubbing and polishing machine at an entry level price. Durable construction with full dust covers. Designed with a high efficiency commercial motor and easy operation with ergo hand controls and handle adjustment lever.
Mains-operated (230 V/50 Hz) and affordable: the scrubber drier with disc technology cleans up to 1700 m²/h. For efficient basic and maintenance cleaning of areas up to 900 m².
Flexible application, ultra compact shape, weighs only 20 kg: the battery-operated BD 30/4 C Bp Pack scrubber drier for quick cleaning of surfaces of up to 300 m².
The BD 50/50 C Bp Classic is an affordable, compact entry-level model in the battery-powered scrubber drier class. The machine allows area performances of up to 2000 m²/h.
With the increasing demand and need for higher standards of cleanliness, the Lolines will put truly useable power in the hands of the operator, yet with a level of convenience that cannot fail to impress and, subsequently, to improve both efficiency and the final results. The Loline 415 model embodies all of the many unique features of the 332 but is suitable for a range of larger 40cm (16”) brushes and 36cm (14”) floor pads. With this machine running at an operating speed of 150rpm it is a genuine taskmaster, satisfying a whole host of floor maintenance needs, be it polishing or scrubbing. The exceptional ease of use cannot fail to impress any user, and even more so where extended operating hours are part of the daily routine. The solution tank system allows for easy use and compact storage, whilst its unique universal filling system adds further to operator convenience.
