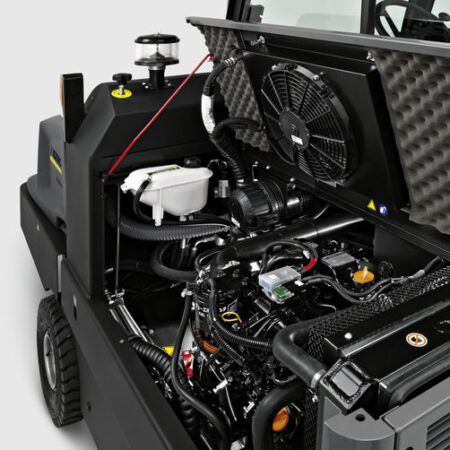

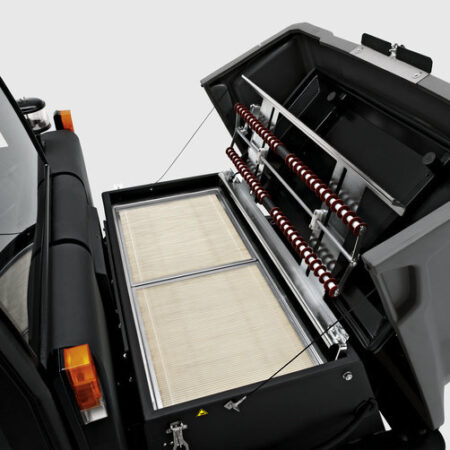

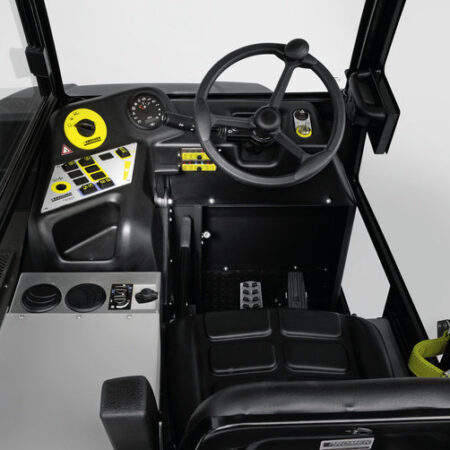

The KM 150/500 R D industrial sweeper is ideal for low-consumption diesel operation and impresses with excellent drive performance. This robust machine is suitable for extreme jobs, e.g. in the building material and metal-working industries or foundries and in all other dirt-intensive sectors. Thanks to the dustpan principle, fine sweepings and coarse dirt are reliably vacuumed. The roller brush automatically adjusts to uneven surfaces and the innovative sweeping system reduces wear and tear to a minimum. The main roller brush can be easily changed without tools. The waste container automatically closes during transport. Two horizontally installed flat pleated filters ensure clean air under heavy dust conditions. Filter cleaning can be done with the push of a button using a highly effective dual scraper. The filter is easily accessible and can be easily changed without the need for tools. The motor is also easy to access. The basic functions can be conveniently selected with a control thanks to the EASY Operation Concept. A cyclone filter cleans the air before it enters the motor and increases the service life considerably.
Kärcher Vacuum Sweeper Industrial KM 150/500 R D
Diesel-powered, fully hydraulic industrial sweeper with three-wheel rear steering. For tackling tough jobs in the building material or metal-working industries, foundries and other dirt-intensive sectors.
Category: Karcher Sweepers and Vacuum Sweepers
Technical data
Drive | 4-stroke diesel engine / Yanmar |
Drive – power (kW) | 22,5 |
Drive type | Diesel |
Max. area performance (m²/h) | 18000 |
Working width (mm) | 1200 |
Working width with one side brush (mm) | 1500 |
Working width with 2 side brushes (mm) | 1800 |
Waste container (l) | 500 |
Climbing ability (%) | 18 |
Working speed (km/h) | 12 |
Filter area (m²) | 7 |
Weight (kg) | 1440 |
Dimensions (L × W × H) (mm) | 2442 / 1570 / 1640 |
Equipment
- Manual filter cleaning
- Traction driveTraction drive, hydraulic
- Adjustable main sweeper roller
- Power steering
- Suction volume regulation
- Dustpan principle
- Forward traction drive
- Reverse traction drive
- Suction
- Hydraulic high container emptying
- Outdoor use
- Elapsed time counter
- Sweeping function can be deactivated
- Wheels, pneumatic-tyred
- Side brush, sweeps out automatically
