TECHNICAL DESCRIPTION: Drive- Honda engine 6.7 kW – 1 pedal for forward and reverse – small turning circle (3350 mm) – automatic vacuum parking brake – automatic engine cut out when driver leaves seat Sweeping/vacuum system: This machine uses the overthrow principle, i.e. the roller brush throws the dirt up and back into the dirt container. The floating roller brush adjusts automatically to uneven surfaces. The filter and main roller brush can be replaced without tools. With integrated coarse dirt flap for coarse waste, e.g. cans, split, gravel or wet leaves. The side brush and roller brush are hydraulically driven. A second optional side brush is available. Dirt container:Both 50 litre dirt containers can be removed from the side. Operation: The side brush and main roller brush can be lowered via a switch. Forward and reverse are controlled via a single pedal.

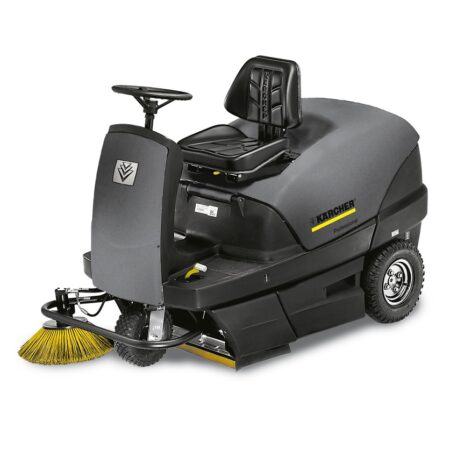

Kärcher Vacuum Sweeper Ride-On KM 100/100 R G
Comfortable, modern ride-on sweeper for professional use indoors and outdoors for areas from 8,000 – 10,400 sqm/h.
|Drive||Four-stroke petrol engine / Honda|
|Drive – power (kW)||6.7|
|Max. area performance (m²/h)||8000|
|Working width (mm)||700|
|Working width with one side brush (mm)||1000|
|Working width with 2 side brushes (mm)||1300|
|Waste container (l)||100|
|Climbing ability (%)||18|
|Working speed (km/h)||8|
|Filter area (m²)||6|
|Dimensions (L × W × H) (mm)||2006 x 1005 x 1343|
- Polyester round filter
- Manual filter cleaning
- Automatic filter cleaning
- Traction driveTraction drive, hydrostatic
- Floating main sweeper roller
- Suction volume regulation
- Coarse dirt flap
- Overhead sweeping principle
- Forward traction drive
- Reverse traction drive
- Outdoor use
- Elapsed time counter
- Sweeping function can be deactivated
- Wheels, pneumatic-tyred
