Solar Panel Cleaning

It was originally said that cleaning and maintenance of solar panels was not necessary, but now it is clear that that weather and air pollution do leave their mark. In order to use solar power as efficiently as possible and to keep the electricity yield at the highest possible level, regular professional solar panel cleaning with the right equipment is necessary.
Solar panel cleaning -  ITS Simply Clean

Solar Panel Cleaning

All types of photovoltaic systems should capture sunlight for as many hours as possible and withstand external influences.

These include snowstorms, rain, storms and hail as well as, depending on the location, soot, pollen, dust from road traffic, leaves, needles or bird droppings.

In agricultural areas, additional films of dirt containing grease and oil form due to particle emissions during the ventilation of poultry houses.

Click here for the Solar Panel Cleaning equipment range, or continue to read the below relevant information.

Why should I clean solar panels?



Clean the panels regularly, not only because of their appearance. Dirt and contamination can reduce the electricity yield by up to 30 %.

Thorough, professional cleaning is necessary, and this does not only apply to the surfaces of the solar collectors. Deposits build up at the junctions between the glass and the frame, which over time can lead to the formation of moss and lichen over a wide area.

Proper cleaning of the solar panels requires the right cleaning technique due to the heavy soiling. The modules are often mounted on roofs at a steep angle of 45°, so take measures to ensure operator safety.

Karcher_iSolar_800_app_03
Karcher_rollerbrush_500_app_5

When should I clean photovoltaic panels?

You should clean solar systems using the right technology and, depending on the location, using professional service providers.

In the agricultural sector, we recommend you clean them two to four times a year, for example after flowering or after harvesting, when the pollution is very heavy.

Panels that are exposed to less pollution from the environment can be cleaned once a year or every two to three years. In this case green electricity can be generated even more sustainably, a topic that will become increasingly important in the future.

The right tools for cleaning solar panels

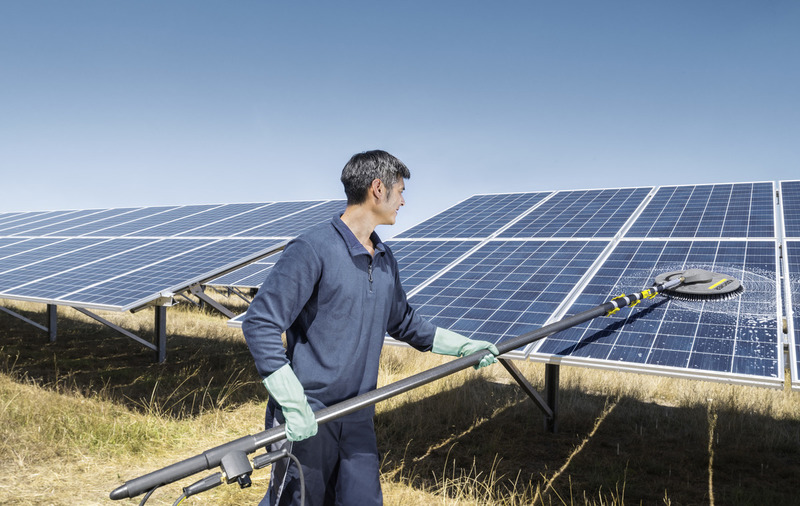

A professional high-pressure cleaner in combination with a brush attachment or a roller brush and a telescopic lance are among the best ways to clean solar panels efficiently and ergonomically.



With the right cleaning technique, it is possible to clean a solar panel area of up to 1,500 square metres per day.

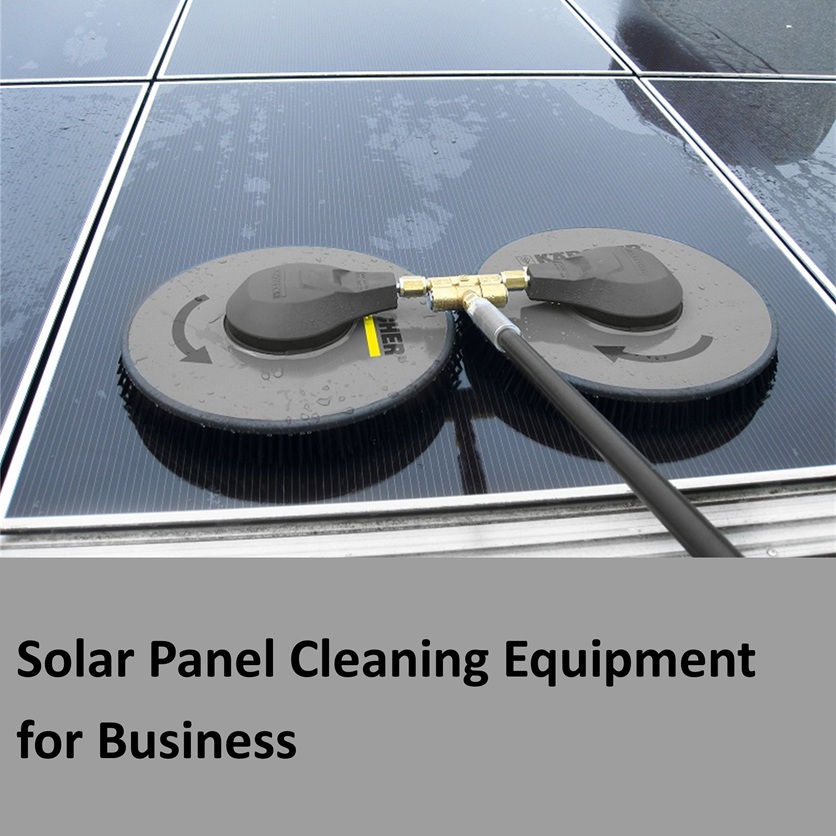

Brush attachment



We recommend an attachment with two disc brushes that reach a working width of 800 millimetres. The effort required is reduced because the system neutralises the drifting movement with the help of the counter-rotating movements of the two brushes. In addition, the large working width ensures a high area output, which reduces the amount of work required for solar cleaning. The disc brushes have ball bearings and are driven by the water from the high-pressure cleaner. Low-pressure operation with cold water and a delivery rate of 700 to 1000 litres per hour is sufficient.

A nylon bristle ensures scratch-free cleaning to protect the sensitive surfaces of the solar panels during cleaning. Models with harder bristles on the outside of the plates also ensure very good cleaning results on the module frames.

It should be possible to control the amount of water comfortably via a lever on the lance while the brushes are guided in paths over the solar modules. Turning the water up a little at the beginning creates a sliding layer that makes it easier to move the brushes on the surface. A self-adjusting articulated joint to which the brush head is attached can help compensate for different working angles.

Solar_panel_cleaning_app_5
Karcher_rollerbrush_500_app_8

Telescopic lance

Choose the length of the telescopic lance to match the size of the system, or use an infinitely extendable lance. Longer lances made of carbon or carbon composite are lighter and therefore more comfortable to handle.

If you value more flexibility and have to clean large façades in addition to photovoltaic systems, you are better off with a variable lance system. Pole systems that are suitable for vertical and horizontal surfaces are available and can be combined with different attachments. Use a high-pressure nozzle for spot cleaning, an attachment with disc brushes for working on horizontal PV elements or a rotating high-pressure roller brush, which is also suitable for vertical façades.



Roller brushes

The advantage of roller brushes is that they are driven by high pressure and work their way up independently – meaning you need to be holding them with a significantly less force. The roller brushes can work with water flow rates from 350 litres per hour. Brushes with soft or hard bristles are available for different surfaces. We recommend soft brushes for solar panel cleaning.

Use cleaning agents and a water softening system for the best results





Cleaning agents

If you are using cleaning agents, they should be suitable for removing stubborn, greasy soiling and mineral residues.

If the water film breaks down quickly, streak-free drying without limescale stains is possible. Soaking time and rinsing shouldn’t therefore be needed, facilitating the cleaning. In order to clean the photovoltaics sustainably, we recommend a cleaning agent that prevents further soiling.



Water softening system

If the water hardness range is greater than medium, we recommend a water softening system. This prevents staining despite the high lime and mineral content of the tap water. The water softener contains a resin filter with an ion exchanger that retains limescale and minerals.
