The Karcher Gantry Car Wash CW 1 Klean!Fit is specially designed to meet the requirements of car dealerships, car hire companies or service stations. Designed with a focus on durability, reliability, low service expenditure and compactness, the system performs impressively everywhere that vehicles need to be washed and dried fast and thoroughly. It is therefore particularly attractive for any companies in which the car wash itself is not the actual core business, or where structural conditions prevent the installation of larger systems. Components that have proven themselves many times and been successful for many years in hard daily work ensure both the long service lifetime of the system and excellent washing and drying results. Expanded to include practical additional programs, the CW 1 Klean!Fit offers a sophisticated, consistent overall concept.
High functionality
Outstanding washing and drying results. Practical additional programs for optimum functionality.
Compact design
Compact arrangement of brush elements ensuring low space requirements.
Long lifetime
Components that have been tried and tested many times for a long service life.
Design

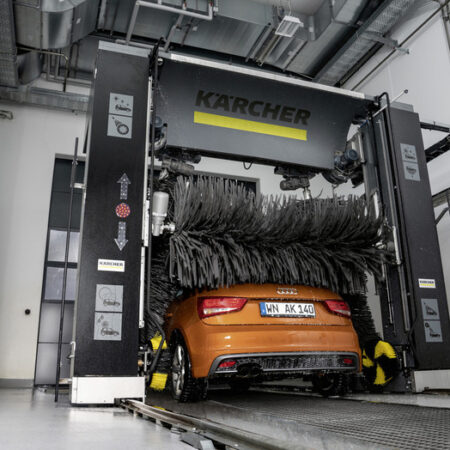

The CW 1 Klean!Fit features sleek black metal doors as standard. As an optional extra, you can specify a bespoke colour scheme for your CW 1 Klean!Fit. The traffic light with green and amber arrows and a STOP light can be installed on the left or right, as preferred. Decals indicating the wash phases are optional. The rear cover, in the same colour as the frame, conceals the technical workings for a neat and tidy appearance. This is particularly important in drive-through halls or open-air sites.
Brushes

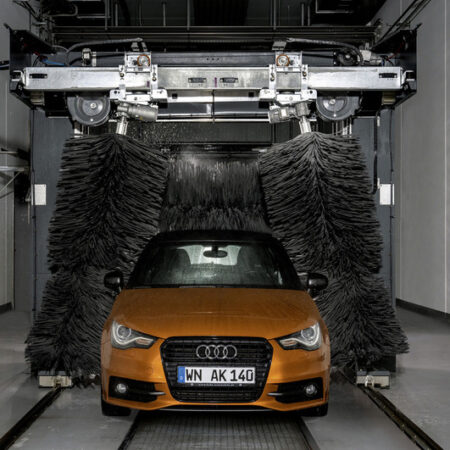

Roof and side brushes feature the brush material CareTouch. This ensures a gentle but effective vehicle cleaning process. Contour detection in the side brushes also ensure optimum washing results. The roof brush splash guard above the roof brush protects the ceiling of the wash hall and the upper section of the system from the splash water produced by the rotating brushes.
Wheel wash
The disc wheel washer cleans rims gently and effectively, removing ingrained dirt such as burnt-on brake dust. High pressure is available as an option.
Dryer
A fixed roof drier with optional swivelling lamella follows the contours of the vehicle for perfect drying results. The side dryers also do the same on the vehicle sides.
Technical data on the Karcher Gantry Car Wash CW 1 Klean!Fit
| Washing height (mm) | 2300 / 2600 / 2900 |
| Drive through width on mirror height (mm) | 2500 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Number of current phases (Ph) | 3 |
| Dimensions (L x W x H) (mm) | 1975 x 3500 x 3765 |
