The Karcher HD 9/18-4 Cage High Pressure Cleaner impresses with a water throughput of 900 litres/hour, crankshaft pump with ceramic pistons, excellent sealing technology and long service intervals.
With a water volume of about 900 litres per hour, the HD 9/18-4 Cage Classic is the most powerful high-pressure cleaner in the HD Cage Classic range. This three-phase machine with 4-pole motor is designed for continuous operation and maximum cleaning performance and features a wide range of high-quality, long-lasting components, such as the crankshaft pump with ceramic piston or sophisticated sealing technology. This robust high-pressure cleaner also features a sturdy frame construction for effective protection against external influences. The intelligent operating concept ensures convenient and safe operation. The option to mount the machine on the wall is a practical, work-alleviating feature. In addition, all relevant components are easily accessible and maintenance-friendly. The long service intervals of the HD 9/18-4 Cage Classic round off the features of this highly reliable and powerful machine.
Long-lasting and reliable
4-pole electric motor. Brass cylinder head and ceramic piston. Reliable crankshaft pump with additional thermostat valve.
Robust and secure
Robust tubular frame construction guarantees optimum protection of the machine. Built-in handles for transport.
Maintenance-friendly
Excellent access to all relevant components. Large water inlet filter for easy servicing.
Versatile

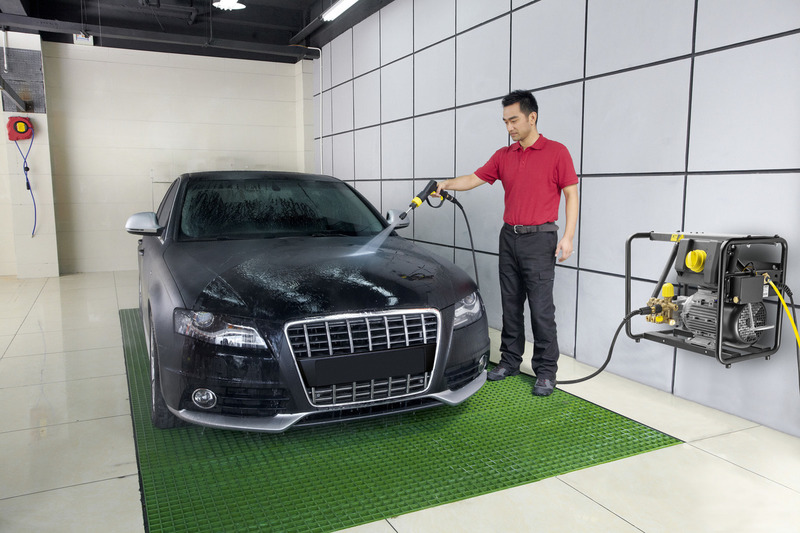

The machine can be attached to the floor or the wall.
Practical trigger gun storage with auto off function (Total Stop optional).
Technical data
| Supply voltage (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 450 – 900 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar/MPa) | 70 – 180 / 7 – 18 |
| Max. pressure (bar/MPa) | 250 / 25 |
| Connected load (kW) | 5,9 |
| Weight (with accessories) (kg) | 52,2 |
| Weight incl. packaging (kg) | 64,6 |
| Dimensions (L x W x H) (mm) | 625 x 500 x 360 |
Equipment on the Karcher HD 9/18-4 Cage High Pressure Cleaner
- Spray gun: Standard
- High-pressure hose: 10 m, ID 8, 315 bar
- Stainless steel spray lance: 600 mm
- Power nozzle
- Crankshaft pump with ceramic pistons
