The extreme ease of use through specially colour-coded control elements is one of the outstanding features of our battery powered Kärcher Ride-On Scrubber Drier BD 50/70 R Classic BP. Its compact, narrow construction style facilitates handling and transport and ensures a high degree of manoeuvrability and agility. This makes the machine from the 70-litre class a real alternative to walk-behind machines. Practical details such as the Home Base, which facilitates the transport of manual cleaning equipment using hooks, or the likewise optionally available bin bag holder and a pre-sweep mop complete the concept.
Easy operation

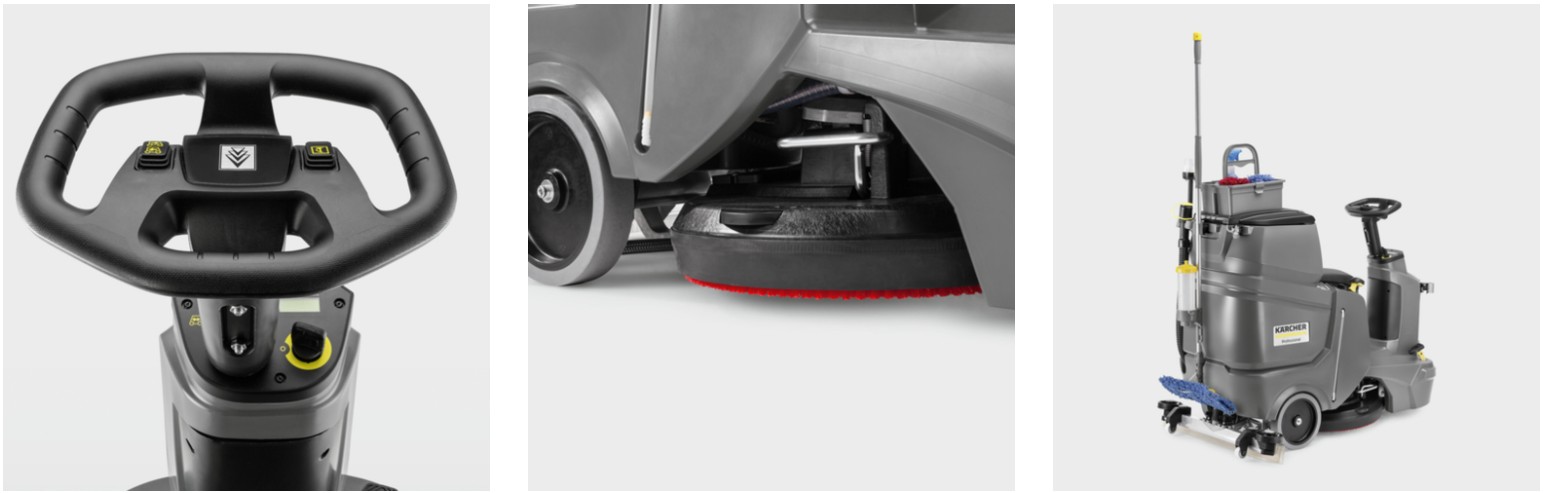

Self-explanatory symbols and clear control panel. Brief familiarisation phases. Simple, yellow colour-coded control elements make the machine easy to use.
Disc brush engineering
Robust construction style with integrated disc brush head. High area performance thanks to large working width. Brush replacement via pedal ejection.
Compact, slim design
Extremely manoeuvrable machine. Clear view of surfaces to be cleaned. Easy to transport.
Optional accessories: pre-sweep mop
Picks up dry dirt, thus supporting the cleaning process.
Helps prevent blockage of the suction channel.
Technical data
| Drive type | Battery |
| Traction drive | traction motor |
| Working width, brushes (mm) | 510 |
| Working width, vacuuming (mm) | 850 |
| Fresh/dirty water tank (l) | 70 / 75 |
| Theoretical area performance (m²/h) | 2805 |
| Practical area performance (m²/h) | 2000 |
| Battery (V) | 24 |
| Battery runtime (h) | max. 2.5 |
| Brush speed (rpm) | 180 |
| Brush contact pressure (g/cm²/kg) | 13 / 20 |
| aisle turning width (mm) | 1650 |
| Water consumption (l/min) | max. 2.3 |
| Rated input power (W) | 1400 |
| Permissible total weight (kg) | 345 |
| Weight without accessories (kg) | 112 |
| Dimensions (L × W × H) (mm) | 1310 x 590 x 1060 |
Scope of supply of the Kärcher Ride-On Scrubber Drier BD 50/70 R Classic BP
- Disc brush: 1 Piece(s)
- Squeegee, v-shape
Equipment
- Powerful traction drive
- Automatic water stop
- Solenoid valve
- Two-tank system
