The Santoemma Elite-Silent Carpet Cleaning Machine is a self-contained extractor for carpet and hard floor with manual traction. It washes, brushes and dries a stripe of 50 cm of carpet, moving forward, cleaning up to 500 sq. meters in one hour. Its 3 stage high-waterlift vacuum system allows to recover the maximum quantity of dirt from carpet and to get a shortest drying time.
Elite-Silent is a very silent machine, since it works with 60 Decibels only. It is possible to adjust the brush and vacuum head pressure, according to the type of carpet. The water-flow can be regulated, for a maintenance low-moisture cleaning or a restoration deep-cleaning.
Elite-Silent can be supplied with the instant hot water unit HT1800. If equipped with the patented SMARTKIT system, it is possible to perform automatic chemical dosing, carpet pre-spraying and rinsing. The optional squeegee SQ720E allows to clean hard floor. An extra brush, specific for hard floor cleaning, is also available.
Cleaning companies, hotels, conference halls, restaurants, clubs, pubs, offices, banks, shops, cinemas, theatres, ferry boats, ships, airports, fitness centres, school, universities, shopping centres, places of worship, mosques and all places with large or middle-sized surfaces of carpet.
Advantages of Santoemma Elite-Silent Carpet Cleaning Machine
– It is possible to clean up to 500 sq meters in one hour, thanks to the working forward system of the machine.
– Possibility to clean both carpet and hard floor with a single machine by using the optional squeegee SQ720E. The squeegee is connected to the machine thanks to a quick disconnect coupling and does not require to use any tool.
– Very silent working (60 decibels), that allows to use the machine with no discomfort for the worker and for other people. The machine can be used also during normal daily working time and in places sensitive to noise such as hotels, offices, banks.
– The tanks, with 50 litres each, allow a long working autonomy and reduce the idle time necessary for the tank filling and draining.
– The 3 stages high waterlift vacuum motor allows an excellent suction and therefore a very short drying time.
– The machine moves forward without effort, thanks to the propelling action of the rotating brush.
– The special profile of the vacuum head allows an excellent suction.
– The sprung vacuum head allows the best suction also in case of uneven floor.
– It is possible to regulate the pressure of the vacuum head according to the carpet thickness.
– The motor of the rotating brush is powerful and reliable and allows a very deep cleaning.
– Possibility to adjust the height of the rotating brush according to the kind of carpet or floor and also according to the dirt degree.
– Brush motor with thermal protection against overload (useful in case of a wrong regulation of the brush height).
– Brush easily replaceable with no need of turning the machine over.
– Possibility to use an optional harder brush specific for hard floor.
– Stainless steel brush bearings for a longer life.
– Quick disconnect spray nozzles, which can be removed without using any tool. The nozzles can be cleaned easily. The complete connector with nozzles can be taken out of the machine without turning the machine over.
– All the controls are at a comfortable height for the worker.
– The spraying of water can be continuous or otherwise activated by a spray lever.
– Possibility to regulate the water flow, according to the degree of dirt and to the desired time for the drying.
– Possibility to connect the machine with optional tools for cleaning hard-to-reach corners. For example, once that the cleaning of a corridor in an hotel is completed, the carpet tool NS300 can be connected to the machine in order to clean inside rooms.
– With the optional SMARTKIT-EL, it is possible to perform automatic chemical dosing and carpet rinsing.
– Adding the pre-spray pipe and gun (PRESPRAY-EL) to the SMARTKIT-EL, it is also possible to pre-spray carpet before cleaning.

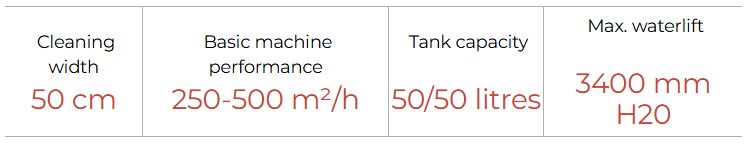

Technical Specifications
(*) The effective performance depends on the type of cleaning required: restorative deep cleaning – maintenance cleaning.
| Approximate performance (basic machine)*: | 250-500 m²/h |
| Approximate performance (professional SET)*: | 340-550 m²/h |
| Recovery tank capacity: | 50 litres |
| Solution tank capacity: | 50 litres |
| Vacuum motor: | 3 stages – Highwaterlift |
| Power: | 1500 W |
| Maximum waterlift: | 3400 mm H2O |
| Maximum air-flow: | 45 l/sec. |
| Pump with by-pass: | membrane |
| Power: | 80 W |
| Maximum pressure: | 9 bar |
| Maximum water-flow: | 4,5 l/min |
| Cleaning width (carpet/hard floor): | 500/720 mm |
| Number of nozzles: | 5 |
| Brush: | 90 W | 600 rot/min | 464 mm |
| Cable lenght: | 15 m |
| Hose lenght: | (optional) |
| Weight (machine body): | 62 kg |
| Weight (packaged machine): | 79Kg |
| Dimensions: | 50 x 86 x 95 cm |
| Package dimensions: | 60 x 95 x 112 cm |
| Units/pallet: | 1 pc/pallet (60 x 95 x 112 cm) |
| Standard color: | Blue |
| Tank construction: | High density polyethylene |
| Suitable to work with heater HT1800-220-M: | YES |
| Sound pressure level – ISO3744 (1m): | 68 dB(A) |
Technical Advantages
– Detachable tanks. The machine can be carried easily even in a small car.
– High density polyethylene tanks, very strong and made for lasting a long time.
– Transparent unbreakable cover, which allows to see the dirty water while it is sucked.
– Easy to reach hole for filling the tank with clean water.
– Drainpipe for easily emptying the recovery tank.
– Drain valve for draining completely the solution tank.
– The gaskets are not glued and replaceable by hand. Easy to clean and change.
– Brass quick-disconnect couplings, reliable and strong.
– Water pump with internal bypass, which allows an automatic regulation of the optimal water flow according to the tool used. Moreover, the bypass device makes the pump more reliable and avoids problems in the years.
– Water pump with external rectifier, specially sized for a greater reliability.
– Vacuum motor with thermal protection against overload.
– Vacuum motor treated against rust.
– Both motor and pump can work continuously.
– Modular design that makes the maintenance easier. The maintenance of the machine can be done at low costs.
