The Santoemma Sabrina-Maxi Carpet & Upholstery Cleaning Machine is a professional machine for cleaning medium areas of carpet. Its high-waterlift vacuum system allows to recover the maximum quantity of dirt from carpet and to get a shortest drying time. Strong, compact and easy to carry, this machine is ideal for cleaning companies. Its narrow width makes it particularly suitable also for cleaning in trains, busses, cinemas and planes

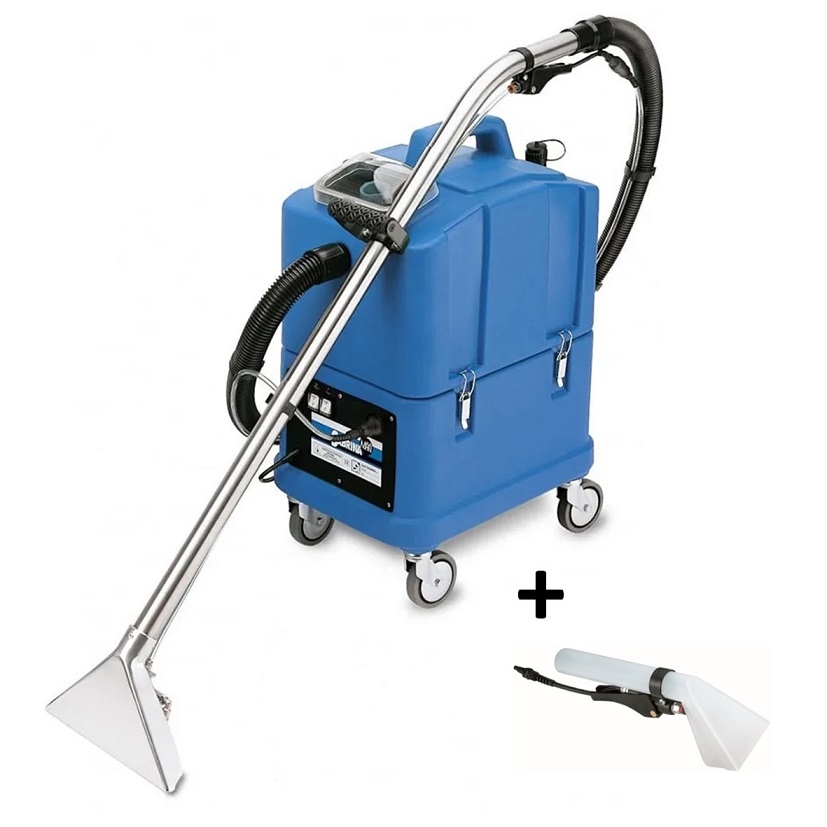

The Sabrina-Maxi is supplied with a 5 metre spray/suction hose, suction tube & wand, 300 mm wide, with aluminum head, 3 quick-disconnect spray-nozzle, stainless-steel tubes, handle.

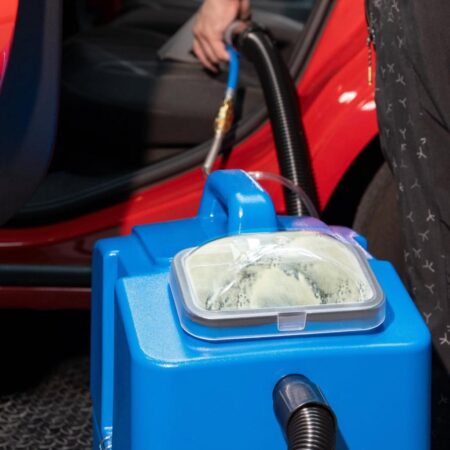

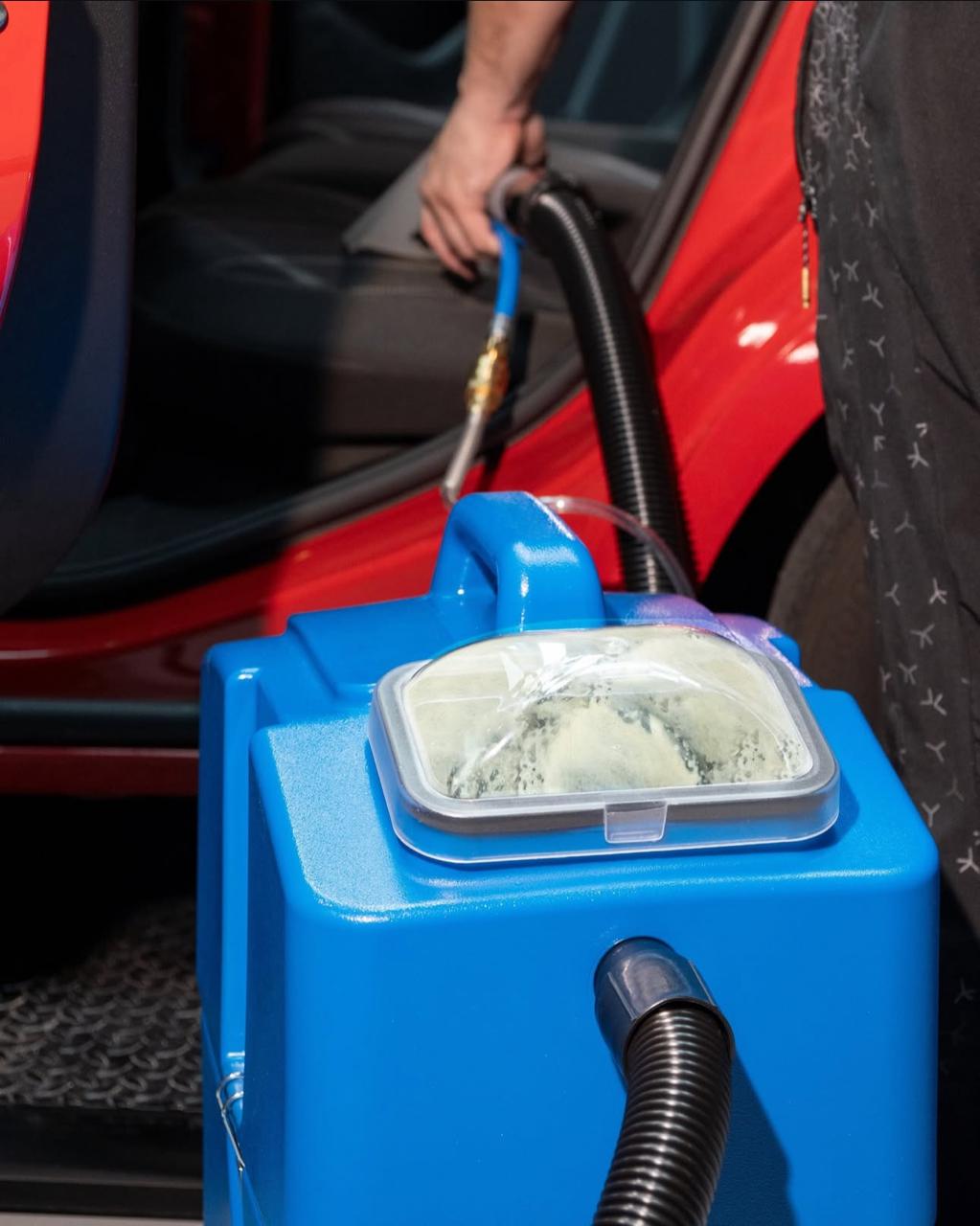

The Sabrina-Maxi Carpet & Upholstery Cleaning Machine includes the the hand tool for cleaning upholstery and vehicle interiors.
Application areas
Car wash, Cleaning companies, hotels, restaurants, clubs, pubs, offices, banks, shops, rental companies, trains, busses, aircraft, cinemas, theatres, ferry boats, ships, schools, universities.
Advantages of Santoemma Sabrina-Maxi Carpet Cleaning Machine
– High-waterlift technology allows incomparable dirt removal and shortest drying time: carpet can be dry in 1 hour!
– The size of the machine is small compared to its tank capacity. The machine is easy to carry even in a small car.
– Carpet tool with aluminium vacuum head, practically indestructible.
– Special profileof the vacuum head, which allows to get the best suction even when the tool inclination changes.
– The height of the handle is adjustable, for greater ergonomics. The handle allows the worker to lift the tool and to press the vacuum head down on carpet with a very small effort.
– Spraying valve designed for avoiding any breaking.
– Tubes in stainless steel, strong and rustproof for the whole machine life.
– Quick disconnect spray nozzles, which can be removed by hand, without using any tool. The nozzles can be easily cleaned.
– It is possible to attach the optional instant hot water unit (HT1800) to the machine, in order to make the cleaning even more effective.
– Using the one of the optional power-brush wands, it is possible to get excellent cleaning results, leaving carpet perfectly clean and dry in a single pass.
– With the optional vacuum tool NS270TURBODUST, it is possible to vacuum dust before cleaning, with the same machine.
Technical Specifications of the Santoemma Sabrina-Maxi Carpet & Upholstery Cleaning Machine
(*) The effective performance depends on the type of cleaning required: restorative deep cleaning – maintenance cleaning.
| Approximate performance (basic machine)*: | 40-80 m²/h |
| Approximate performance (Professional SET)*: | 130-180 m²/h |
| Recovery tank capacity: | 30 litres |
| Solution tank capacity: | 30 litres |
| Vacuum motor: | 2 stages – High waterlift |
| Power: | 1500 W |
| Maximum waterlift: | 3000 mm H2O |
| Maximum air-flow: | 50 l/sec. |
| Pump with by-pass: | membrane |
| Power: | 80 W |
| Maximum pressure: | 9 bar |
| Maximum water-flow: | 4,5 l/min |
| Cleaning width (carpet/hard floor): | 300 mm |
| Number of nozzles: | 3 |
| Cable lenght: | 10 m |
| Hose lenght: | 5 m |
| Weight (machine body): | 25 kg |
| Weight (packaged machine): | 32 Kg- |
| Dimensions: | 38 x 50 x 78 cm |
| Package dimensions: | 42 x 65 x 91 cm |
| Units/pallet: | 8 pcs/ pallet (84x130x194h) |
| Standard color: | Blue |
| Tank construction: | High density polyethylene |
| Suitable to work with the HT1800-220-M heater: | YES |
| Sound pressure level – ISO3744 (1m): | 73 dB(A) |
Technical Advantages
– High density polyethylene tanks, very strong and made for lasting a long time.
– Transparent unbreakable cover, which allows to see the dirty water while it is sucked.
– Drainpipe for easily emptying the recovery tank.
– Drain valve for draining completely the solution tank.
– The filter of the vacuum motor is easily removable for cleaning.
– The gaskets are replaceable by hand since they are not glued. Easy to clean and change.
– Strong wheels, in antimark rubber.
– Brass quick-disconnect couplings, reliable and strong.
– Water pump with internal bypass, which allows an automatic regulation of the optimal water flow according to the tool used. Moreover, the bypass device makes the pump more reliable and avoids problems in the years.
– Water pump with external rectifier, specially sized for a greater reliability.
– Vacuum motor with thermal protection against overload.
– Vacuum motor treated against rust.
– Both motor and pump can work continuously.
– Modular design that makes the maintenance easier. The maintenance of the machine can be done at low costs.
