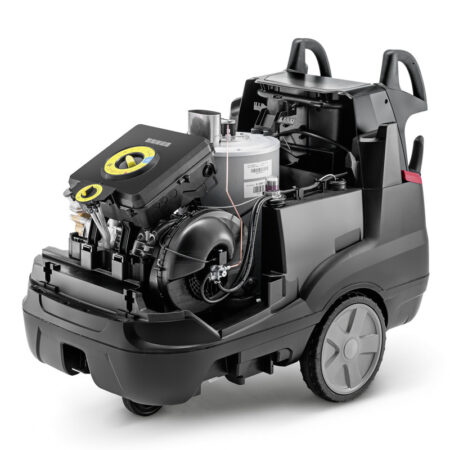

Kärcher HDS 13/20-4 S Hot Water High Pressure Cleaner – one of the most powerful machines in Kärcher’s super class, impresses with the best cleaning results under the harshest operating conditions. High-quality components such as the low-speed, 4-pole, water-cooled electric motor and the robust 3-piston axial pump with ceramic piston provide maximum quality, while the economical eco!efficiency mode ensures maximum efficiency. Very easy to operate and maintain, ergonomically designed and easy to transport, the HDS 13/20-4 S also scores highly in terms of user-friendliness. This is underlined not least by the energy-saving EASY!Force Advanced HP trigger gun with servo control and 1050-millimetre-long spray lance with patented nozzle technology. The optimised burner engineering, 2 detergent tanks, extensive safety technology, time-saving EASY!Lock quick-release fasteners and sophisticated accessory storage options round off the machine’s lavish equipment package.
Multiple storage spaces for accessories integrated into the machine
On-board storage for full range of accessories. Includes 2 hooks for suction hose and power cord.
Spacious storage compartment, e.g. for detergents, gloves or tools.
Operational safety

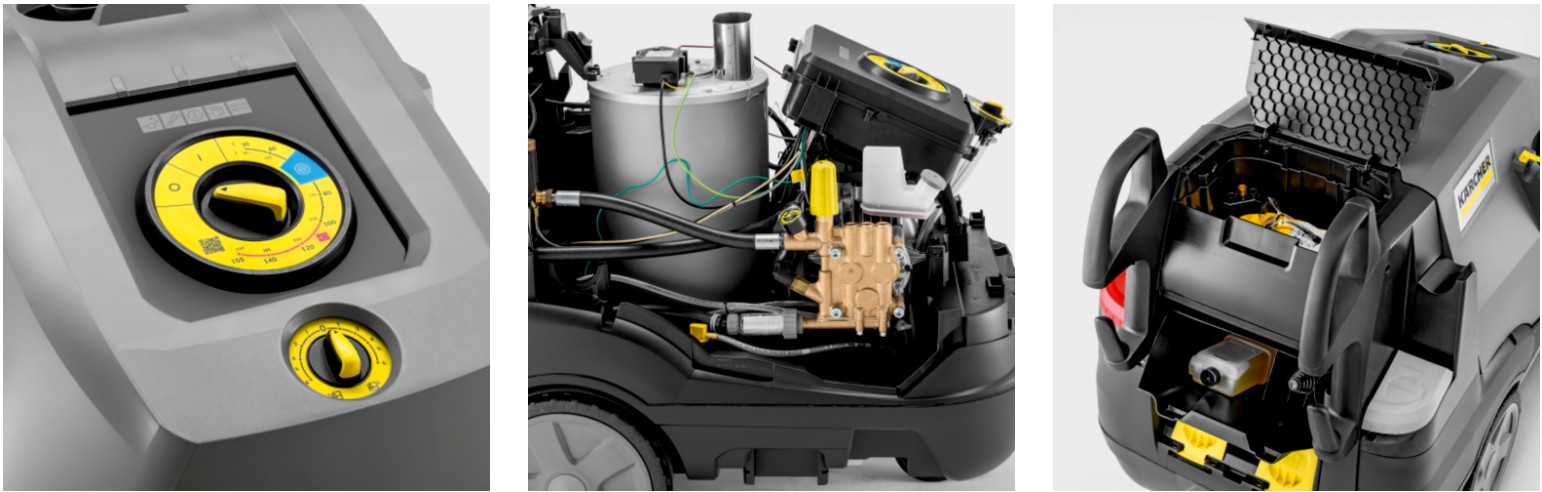

Easy-to-access water filter protects the pump against dirt particles in the water.
Safety valves, water shortage and fuel protection ensure the availability of the machine.
The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
Wide-ranging accessories with EASY!Lock
EASY!Force Advanced for fatigue-free work without any holding force.
Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
Rotating 1050 mm stainless steel lance.
Detergent dosing
Easy to switch between detergent tank 1 and 2.
Precise detergent dosing unit with rinse function.
Mobility concept
“Jogger” design with large rubber wheels and steering roller.
Integrated tipping trough for effortless transport over ledges.
Push handles for simple transport and manoeuvrability.
Easy to use controls
One switch for all unit functions.
Technical data
| Supply voltage (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 600 – 1300 |
| Working pressure (bar/MPa) | 30 – 200 / 3 – 20 |
| Temperature (for supply 12 °C) (°C) | min. 80 – max. 155 |
| Consumption of heating oil or gas at full load (kg/h) | 9.5 |
| Consumption of heating oil in eco!efficiency mode (kg/h) | 7.6 |
| Connected load (kW) | 9.5 |
| Power cable (m) | 5 |
| Fuel tank (l) | 25 |
| Weight (with accessories) (kg) | 206 |
| Weight incl. packaging (kg) | 215.9 |
| Dimensions (L x W x H) (mm) | 1330 x 750 x 1060 |
Scope of supply
- Spray gun: EASY!Force Advanced
- High-pressure hose: 10 metre, Longlife, DN 8, 400 bar
- Spray lance: 1050 mm
- Power nozzle
Equipment on the Kärcher HDS 13/20-4 S Hot Water High Pressure Cleaner
- Pressure switch-off
- Option for the 2 spray lance operation
- Pole reverse plug (3~)
- Soft Damping System (SDS)
- 2 cleaning agent tanks
- Dry-running protection
