The Hot Water High Pressure Cleaner Karcher HDS 8/18-4 C is the most powerful hot water high-pressure cleaner in our HDS Compact class. The three-phase machine with 4-pole, water-cooled electric motor offers everything you could expect when it comes to ease of use, ergonomics and efficient use of resources. Users will be impressed by features like the simple single-button operation and the high level of mobility provided by the large wheels and steering roller. While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners enable handling that is five times faster than with conventional screw connections, without losing any robustness or longevity. The hard-wearing chassis ensures optimum safety, as the tanks for cleaning agents and fuel are securely integrated. Handy storage compartments for accessories and tools complete the wide range of features offered by the HDS 8/18-4 C Classic.
Efficiency
eco!efficiency mode – efficient and environmentally friendly, even when used for prolonged periods. Reduces fuel consumption and CO2 emissions by 20%. Accurate cleaning agent dosing unit with clear rinse function.
Ease of use

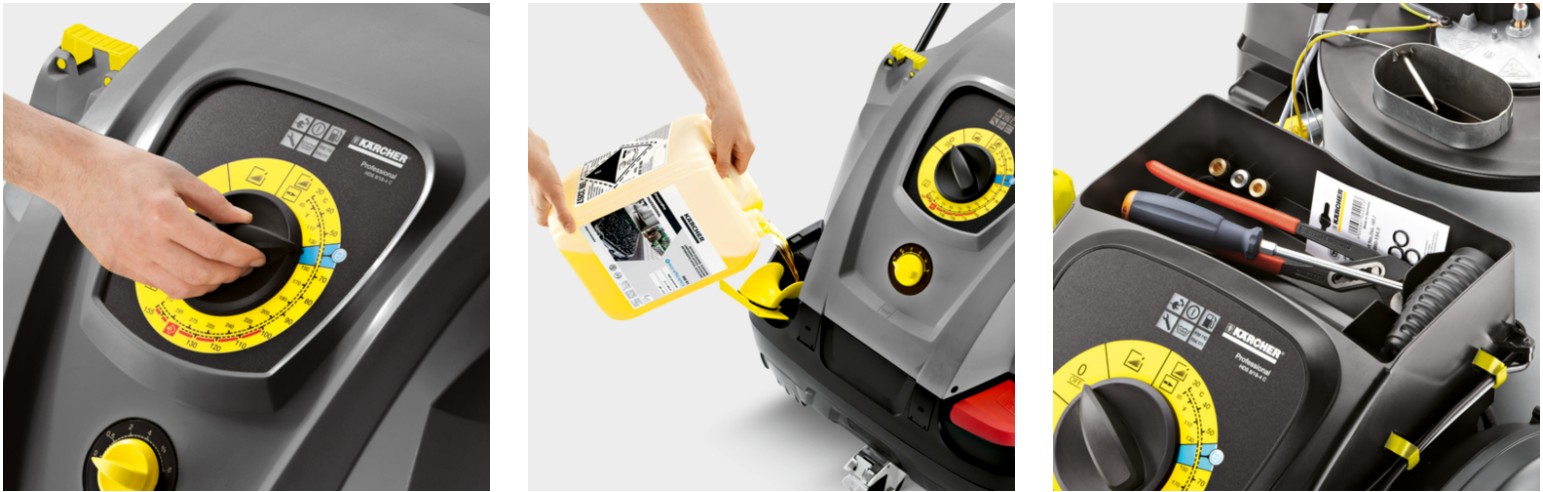

Intuitive operation thanks to the large single-button selector switch. Large tank opening with filling chute. Tanks for cleaning agent, calcification protection and fuel can be conveniently filled from outside without opening the hood.
Storage
Lockable accessory compartment for nozzles, tools, etc. Storage hooks for power cable and high-pressure hose. Integrated lance holder for transport.
Reliability
The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
Large water filter protects pump against damage.
Water softening system protects the heating coil against calcification damage.
Portability
“Jogger” design with large wheels and steering roller.
Large integrated handles in the chassis.
Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.
Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
Application areas

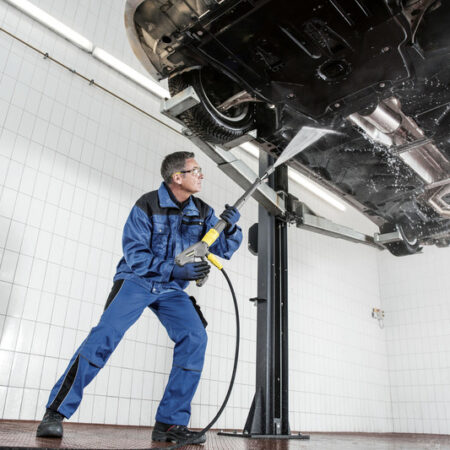

Vehicle cleaning
Device and machine cleaning
Workshop cleaning
Cleaning outdoor spaces
Service station cleaning
Façade cleaning
Swimming pool cleaning
Cleaning of sports facilities
Cleaning during production processes
Cleaning of production facilities
Technical data
| Power supply (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 300 – 800 |
| Working pressure (bar/MPa) | 30 – 180 / 3 – 18 |
| Temperature (for supply 12 °C) (°C) | min. 80 – max. 155 |
| Connected load (kW) | 6 |
| Consumption of heating oil or gas at full load (kg/h) | 5 |
| Consumption of heating oil in eco!efficiency mode (kg/h) | 4 |
| Power cable (m) | 5 |
| Fuel tank (l) | 15 |
| Weight (with accessories) (kg) | 120.8 |
| Weight incl. packaging (kg) | 129.6 |
| Dimensions (L × W × H) (mm) | 1060 x 650 x 920 |
Scope of supply
- Spray gun: EASY!Force Advanced
- Spray lance: 1050 mm
- Power nozzle
Equipment on the Karcher HDS 8/18-4 C Hot Water High Pressure Cleaner
- High-pressure hose length: 10 metre
- High-pressure hose specification: DN 6, 250 bar
- Soft Damping System (SDS)
- Pressure cut-off
- Integrated fuel and detergent tank
